Real quick, the reason for the credential pop-up is because the URL you are accessing is not in the Local Intranet trusted sites lists, as shown in Figure 6a and 6b!
I setup a domain and did some learning on Kerberos.
The first lessons I learned working towards a better understanding of Kerberos was some NTLM internals. This is because after configuring IIS as shown in Figure 1, to use Negotiate, when I accessed the IIS server from a client, the client and server negotiated NTLM instead of Kerberos. So I had to find out why. What I am confident was happening was caused by the account I was using. I was using an Administrator account which had a match in the SAM database on the client. I learned some good NTLM information here.
Figure 1, configure Kerberos (negotiate) on IIS
In my lab I had my own CONTOSO domain and created a new account. When I used this account, I was able to see that Kerberos was being used. Once I got Kerberos to be used, I got the issue where I had to login once per browser session. I.e. I would access the server URL, get prompted for my credentials, enter them and then I had access to the web site. So Kerberos wasn’t failing, I was just getting that credential popup which was not desired. See the following figures:
- Figure 2 – initial request using the FQDM where I see the WWW-Authenticate headers for both Negotiate and NTLM, normal to get a 401.2 returned, see here.
- Figure 3 – the response to the 401.2 from the client was to send the Authorization: Negotiate cookie with the next request. I noticed the length of the cookie and can be confident that it is indeed Kerberos, NTLM would be shorter.
- Figure 4 – is a Network Monitor trace to additionally confirm Kerberos is used and looked at the SPN used for the Kerberos ticketing process
- Figure 5 – the challenge response pop-up I got when accessing the FQDM
Figure 2, client request using fully qualified domain name (FQDM)
Figure 3, client request send back Authorization: Negotiate cookie
Figure 4, Network Monitor trace showing the SPN for my Kerberos request
Figure 5, Kerberos challenge response pop-up, works after entering credentials
Once I added the FQDM to the client browser, as shown in Figure 6, I no longer had to enter the credentials for Kerberos authentication to work.

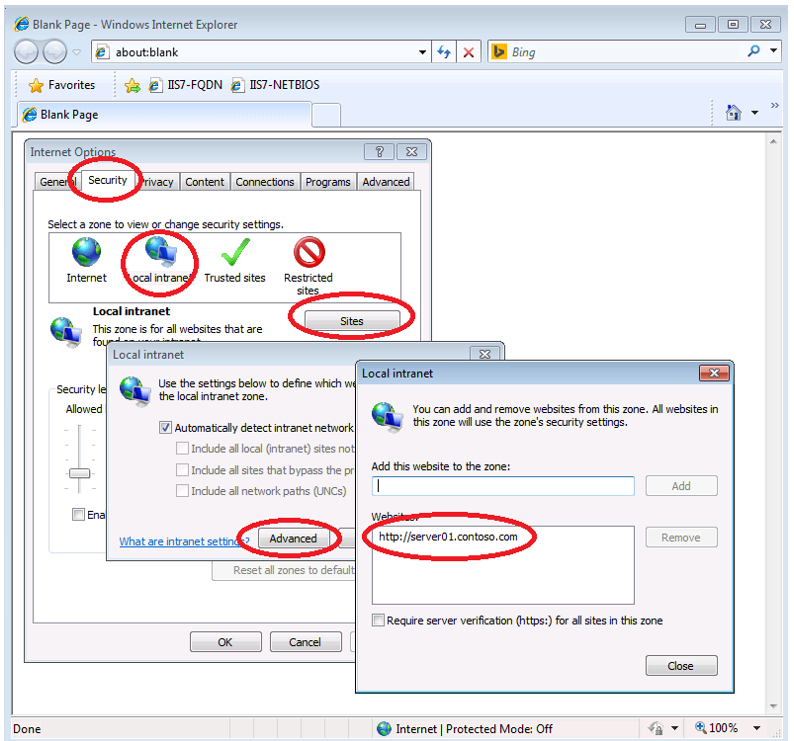

Figure 6a, add the FQDM to the Local Intranet site, IE 10

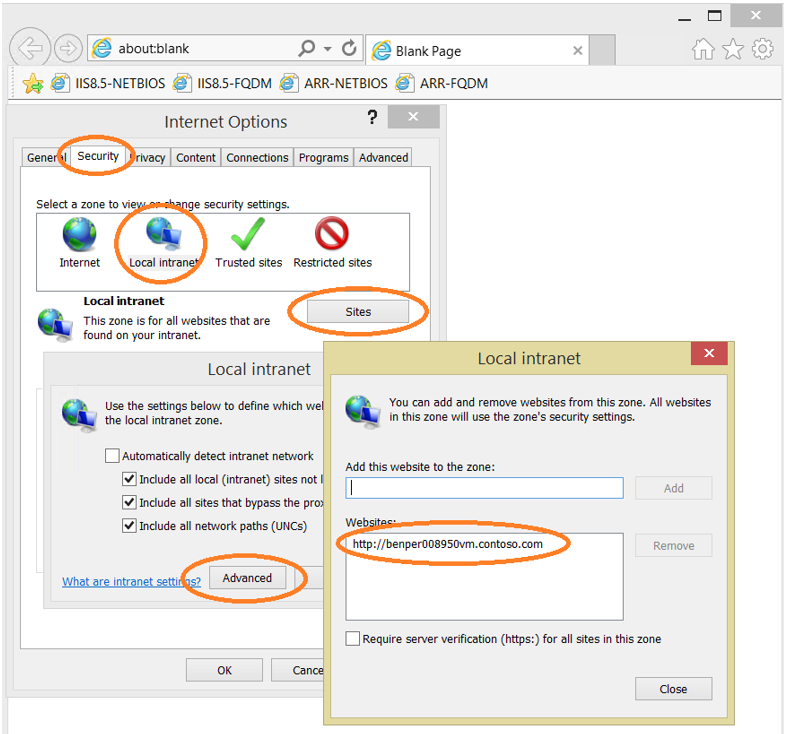

Figure 6b, add the FQDM to the Local Intranet site, IE 11
Figure 6c, add the FQDM to the Local Intranet site, IE 11
Figure 7, add the FQDM to the Local Intranet site, IE 11
