How to get a static IP address for your Windows App Service Web App

11-AUG-2016: This article discusses INBOUND IPs, if you are looking for a single outbound IP address, Web Apps do not support that, instead there is a group of ~4 outgoing IP addresses described here. If you want your own set of outbound IPs, consider an ASE described here.

25-OCT-2017: If you delete an existing binding during the certificate renewal process, then you likely will get a new inbound IP address allocated. This would cause a problem with an A record DNS configuration. Therefore, to renew a certificate, upload the new certificate, noting the new thumbprint and bind that one to the App Service domain without deleting the old one, I.e. replace/update instead of delete/add.

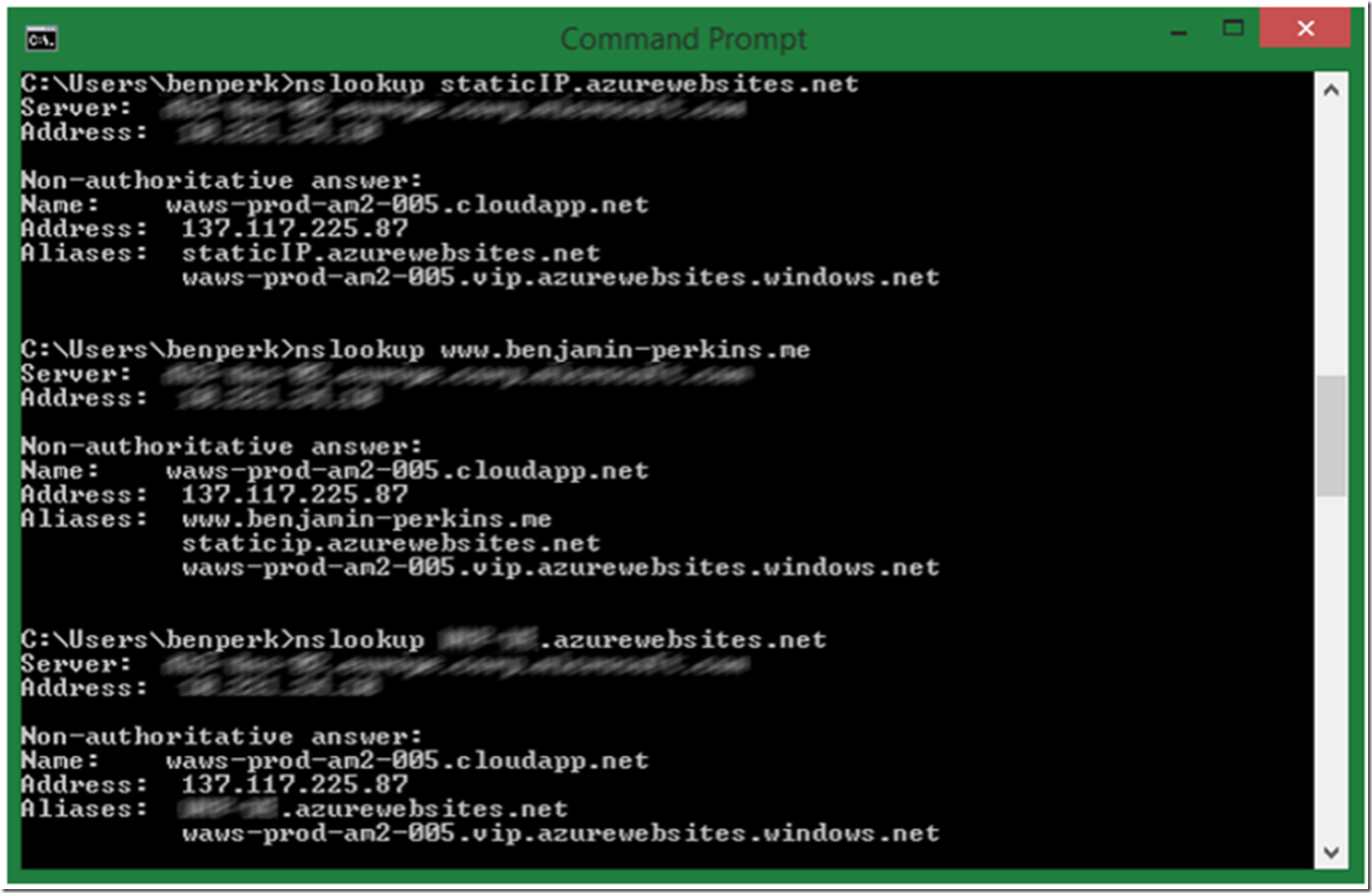

When you host your web site on the Azure Web App platform it is bound to a virtual IP address that is shared with other web sites in that region stamp. See in Figure 1 where I performed an NSLOOKUP of a few of my test Web App sites, they return the same IP address. Sometimes you might need or want your own static IP address for your web site. This article explains how you can do that.


Figure 1, same IP address for all Azure Web App

The basic concept is that you will need to install and configure an IP based SSL certificate. A self-signed certificate will work fine, so there is no requirement to purchase an SSL certificate to get the static IP address. The caveats are that your Web App must be in either Basic or Standard mode and there is likely some billing impact when using an SSL certificate. See here.

NOTE: I have read/heard that when using Web Hosting Plans / App Service Plans that you get 1 free static IP address, so check out this link to see if you find the same.

The steps required to setup a self-signed IP based SSL certificate so that you get a free static IP address is by following these steps.

  1. Make sure your Web App is in either Basic or Standard mode
  2. Configure CNAME in DNS for your Web App
  3. Create a self-signed SSL certificate
  4. Upload an configure the certificate

Scale your Web App to either Basic or Standard mode

Select the Web App that you want the static IP for and make sure it is scale to either Basic or Standard as shown in Figure 2.


Figure 2, zure Web App in Basic or Standard mode

Configure CNAME in DNS

You will need to have a custom domain mapped to your Web App URL. Here are the instructions for achieving that.

Create a Self-Signed Certificate

I created an article on how to create and export a self-signed certificate here, so use that as a reference for this step. Take note that the certificate Subject Name must match the custom domain name mapped to the MAWS. That article discusses how to create the self-signed certificate using MAKECERT and then imports it into IIS, but you can import the same certificate into Web App.

Upload and configure the self-signed certificate

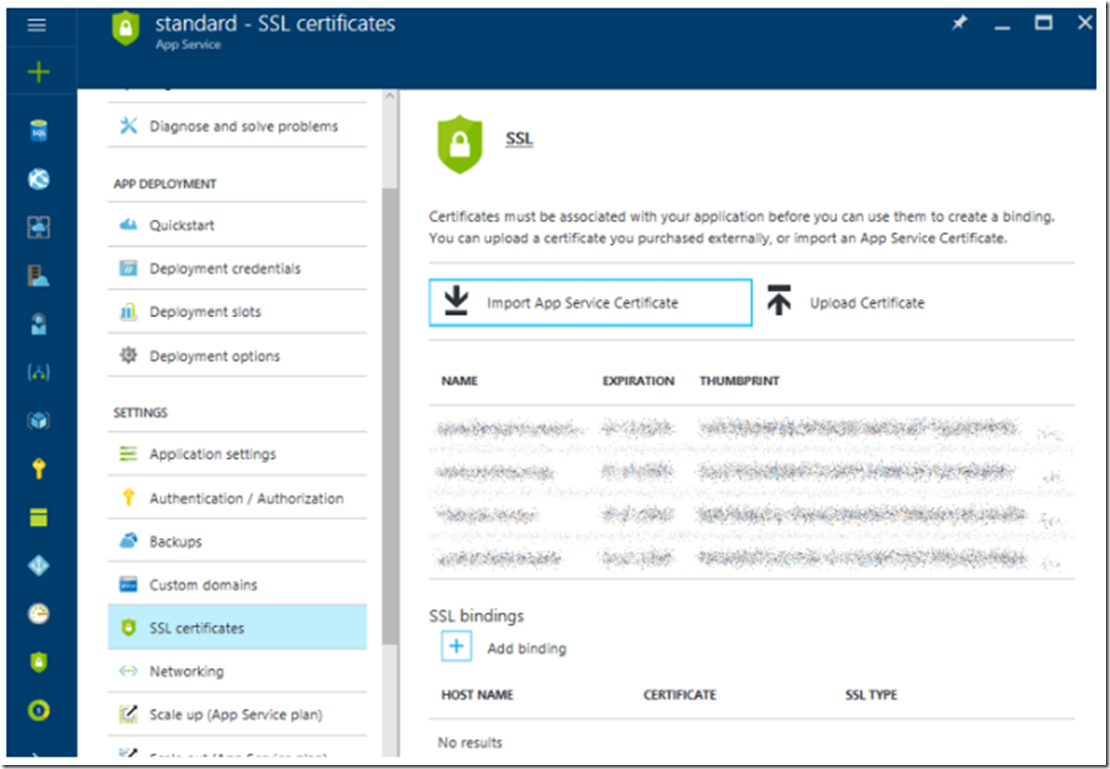

Once you are ready to configure the self-signed SSL certificate, access the Microsoft Azure management portal, select the web site which you would like the static IP address for and click on the CONFIGURE item at the top of the page. Once on this page scroll down until you see CERTIFICATES as illustrated in Figure 3.



Figure 3, uploading and configuring a self-signed certificate on Azure Web App

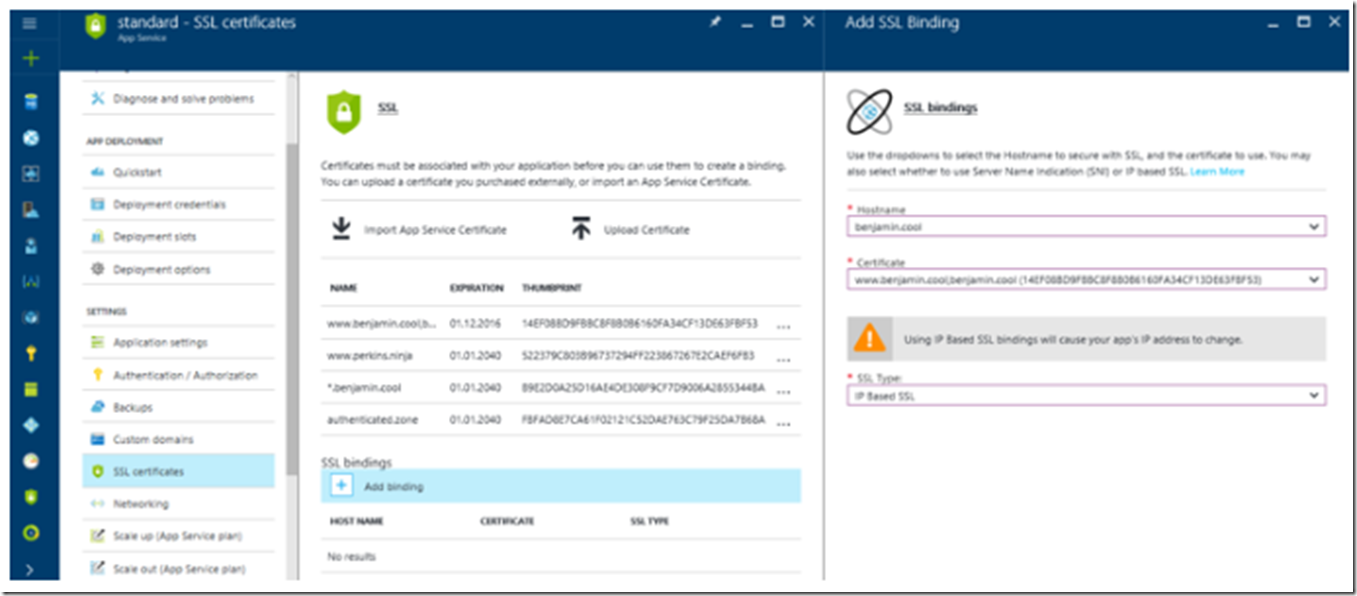

Click on the UPLOAD A CERTIFICATE button and upload the self-signed certificate. Once uploaded, click on the drop-downs in the SSL BINDINGS section and map the self-signed certificate to the domain name. Figure 4 illustrates an example of how this might look.



Figure 4, configure an IP based SSL self-signed certificate Microsoft Azure Web Apps

When I tested this it did take some time for the static IP address to show up in NSLOOKUP. But after some minutes it did happen. Figure 5 illustrates that the Web App and custom domain now have a different IP address than my other Web App sites in the same region and stamp.


Figure 5, a free static IP using Azure Web App

Notice that the IP address has changed from the one shown previously in Figure 1. This was the objective and it has been met.
